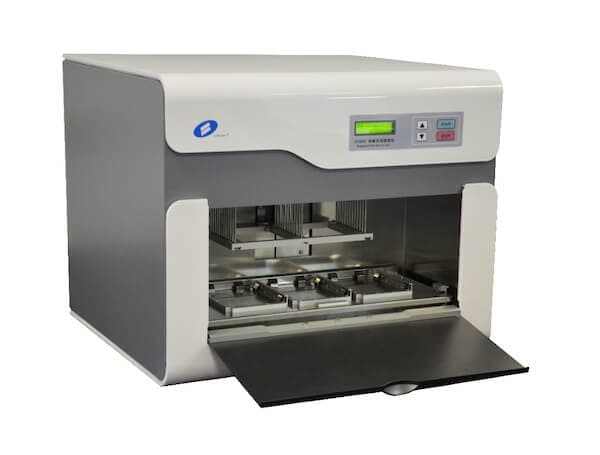

EX3600 is a fully automated platform for nucleic acid extraction. Combined with the corresponding magnetic beads isolation kits, EX3600 Automated Nucleic Acid Extraction Instrument can extract high purity DNA, RNA, miRNA and viral nucleic acid from various samples, such as whole blood, serum, plasma, feces, milk and cells. It is suitable for the nucleic acid extraction in genome research, molecular biology research and clinical genetic testing.

Main performance parameters and specifications

• Product Model = EX3600

• Sample Volume =  20-200μl

• Throughput =  36units/run

• Sample Handling Time =  3-5 min

• Instrument Running Time =  20-40min

• CMOD (control module) =  1

• Magnetic Beads Collection Efficiency =  ≥99%

• 96 Well Plate =  3 pieces

• Magnetic Cap (disposable) =  3 strips (12 wells/strip)

• Keypad / Display Screen = Start/ Stop/ Direction Keys/ LCD

• Boundary Dimension (L×W×H) =  53×50×45cm

• Net Weight =  30 kg

• Operation Condition = 10-40℃, relative humidity＜85%
